I have a question about the LIVE pin in the power socket on the Rose RS130.
Looking from the back of the device, is the LIVE pin on the right or left?
I asked the same question about the RS 151; I think it will be the same in both devices. It’s a shame that such important details aren’t described in the manual, but perhaps someone from the manufacturer can tell us which pin in the device’s socket is the primary one.
Your question made me ask the same thing for the RS130, hoping that in a reasonable time a Rose representative will answer us. It is true that I have little hope after the behavior of these representatives here on the forum.
I don’t think the position of the LIVE pin is the same on different models. I have even encountered cases when on the same model, but different batches, the position was different!

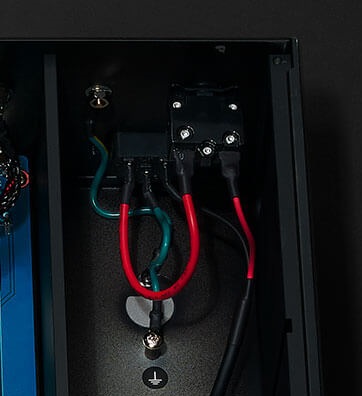

Here is an example:

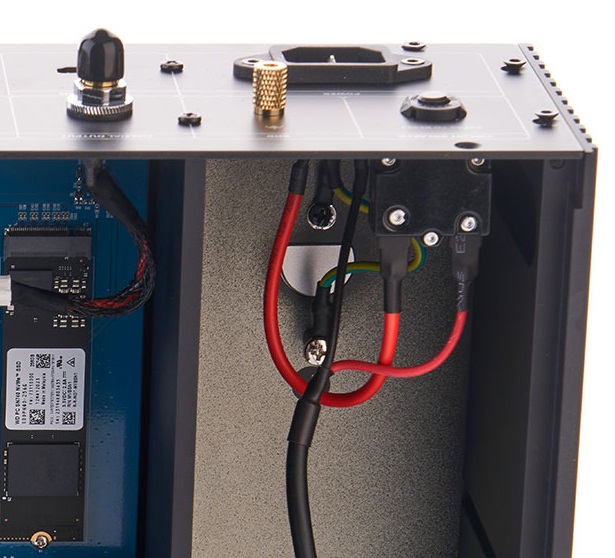

Regarding the RS130 strictly, from the photos of the interior, it seems that the LIVE pin is on the right, but I would have liked a confirmation from the manufacturer.
When looking from the rear of the RS130 (with the power inlet facing you), the LIVE pin is located on the right side, and the NEUTRAL pin is on the left, following the standard IEC power inlet configuration.
A very pleasant surprise!
Thanks for your quick response Rosehan.
If you believe in it, you’ll definitely hear the angels singing and their harps playing. But gold fuses are also supposed to do the trick. Oh, and before I forget: Order the green waterproof pens for CDs.
You can order the pens from me for $1,000.
Look at reality and don’t believe the high-end mafia.
1 Like
On the exact right side it is also in the RS 151
